Labelmate Rewinders & Unwinders
About Labelmate
LABELMATE is your source for quality Label Rewinders, Unwinders, Dispensers, Slitters, & Core Chucks worldwide. These are the highest quality products, produced to LABELMATE’s world-class standards of excellence. We manufacture all the products we sell. LABELMATE products will solve your label handling problems while bringing you new convenience and reliability at industry-leading low prices.
LABELMATE has engineered a complete range of rugged, durable products. You can choose from very low-cost Universal Label Rewinders to High-Speed Heavy-Duty Rewinders for use in continuous-duty high-volume production environments. LABELMATE Slitters increase your small label production efficiency while LABELMATE Unwinders solve your label feed problems. Core Chucks make mounting and removing label rolls easy. The most easy-to-use, heavy-duty, and reliable products of their kind, every LABELMATE Product is built to rugged industrial-quality standards.
Learn More
Call us on 0161 818 6446 to request pricing or to discuss your specific label media handling requirements.
UCATS Unwinders

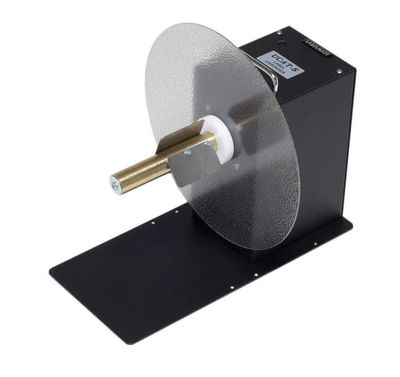

UCAT-S Heavy-Duty Unpowered Label Unwinders
This is the world’s least expensive professional Unwinder. It is unpowered and now has an adjustable “wearless” brake. The UCAT-S accepts up to 300 mm diameter rolls and up to 155 mm width, 76mm cores.
UCAT-1 Heavy-Duty Unpowered Label Unwinders
This is the classic LABELMATE Unwinder with Adjustable Speed-Proportional Braking.Up to 300 mm diameter rolls and 155 mm width, 76mm cores. Optional 255 mm width and a 25 mm to 101 mm Adjustable Core Holder are available. Please see the table of available models below.

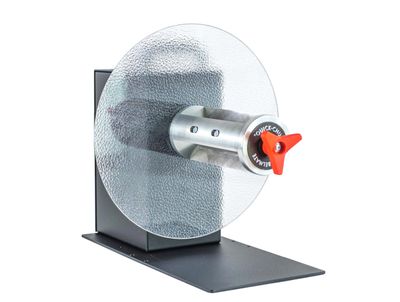

The CAT-3 Heavy-Duty Label Rewinders
LABELMATE’s Constant Adjustable TorqueTM (“CAT”) technology has made the silent, easy-to-use CAT-3 the “Industry Standard” Label Rewinder. There are no awkward troublesome belts or clutches.The CAT-3-STANDARD handles labels up to 155 mm wide and will wind a roll of labels up to a 300 mm diameter. Torque and Direction are fully controllable from the Control Panel. Dual torque ranges provide plenty of power for use with a LABELMATE Slitter, too.
For wider labels up to 255 mm, choose the CAT-3-10”.Model CAT-3-ACH includes an Adjustable Core Holder that accepts any core size from 25 mm to 101 mm in diameter and up to 155 mm in width.The optional Adjustable Paper Guide APG-CAT with movable arm can be installed in minutes on the base plate of the CAT-3-ACH or CHUCK. This inexpensive accessory guides the outer edge of the label roll as it’s being rewound to ensure even roll alignment.The CAT-3-CHUCK includes LABELMATE’s durable “Quick-Chuck”TM quick-locking Core Chuck, permitting the fastest loading and unloading of cores and label rolls.The CAT-3-CHUCK is ideal for label slitting applications, high-volume production environments, or anywhere the ultimate convenience in Rewinders is desired. The CAT-3-CHUCK is available for 38-,40-,44-, 50, 70, 76- and 100 mm cores. The CAT-3 handles any rewind job and with its “HIGH” torque range can also power the LABELMATE S-100 or S-200 Label Slitters.The CAT-40G is gear motor driven for more torque. It accepts bigger rolls with a diameter up to 400 mm. It is equipped with the LABELMATE “Quick-Chuck”tm quick-locking Core Chuck.
Please note that if to be placed after a print, you need the CAT-40G-TA.The CAT-3-TA Heavy-Duty Label RewindersThe CAT-3-TA is a CAT-3 with tension arm specially engineered for applications that require fixed web tension. The TA is available for all models of CAT-3.IMPORTANT NOTE: The CAT-3-TA can be also be used as a regular CAT-3 with the same features.Rugged, heavy-gauge steel construction allows your CAT-3 / CAT-3-TA Rewinder to be simply set in place. Special anti-slip feet keep the unit from moving.
Reliable, high quality and maintenance-free, the Heavy-Duty CAT-3 / CAT-3-TA Label Rewinders feature a 5-Year Parts and Labour Limited Warranty, the longest in the industry. (The Warranty Period for included Power Supplies is 1-Year).Put LABELMATE CAT-3 / CAT-3-TA Label Rewinders to work for you today and enjoy a new dimension in label rewinding convenience and reliability. Custom colours, badging, and special core holders are available for private label applications.
