Next Generation "Wearable" Barcode Scanners

ProGlove MARK2

ProgGlove MARK Display

ProgGlove MARK Display

Wearable barcode scanning solutions

Find out more

ProgGlove MARK Display

ProgGlove MARK Display

ProgGlove MARK Display

Wearable barcode scanner with display screen

Find out more

ProGlove Mark2

Wearable barcode scanning solutions

Transform from handheld to smart, wearable barcode scanners with ProGlove. ProGlove solutions connect the industrial worker with the IIoT and provide management tools to supply the required data where it is needed on site. This allows for greater efficiency, flexibility, and quality.

THE NEW MARK 2 WITH BLUETOOTH AND EXTENDED SCAN RANGE

MARK 2 is an expression of our customer-centric design approach. This state of the art smart wearable connects the human workforce to the IIoT, giving them a  decisive edge by strengthening their role in the digitized Industry 4.0. This leads to greater efficiency, flexibility, and quality.


Unlike its predecessor, MARK 2 can be connected to other devices such as tablets, smartwatches or wearable terminals via Bluetooth Low Energy (BLE). Additionally, the module offers an extended scan range of up to 150 cm. This makes it an ideal choice for picking, palletizing or working at packing stations. Because of the adjustable feedback options including acoustic signals, vibration and LEDs on the back of the hand – users no longer have to constantly check process steps on a control monitor. Other benefits of MARK 2 include:


  • Optimized for high frequency scanning
  • Extended battery life of up to 15 h
  • Compatible with all ProGlove wearables and the Access Point One S

Technical Specification

Weight:                 40g

Size:                       50 x 45 x 16 mm

Connectivity:     868 MHz (with Access Point)

                                 Bluetooth Low Energy (BLE)

Battery:                 Approx. 15 h / about 6000 scans

Scan Range:       Mid-Range up to 150 cm

Laserclass:          Laser Class 2

Range:                  868MHz: Up to 30m

                                 LE: Up to 10mI

IP Code:                54

Industries

  • Automotive
  • Aviation
  • Logistics
  • Manufacturing
  • Retail

Applications

  • Assembly
  • Picking
  • Packing
  • Staging


Contact us for pricing and or demonstration

call 0161 818 6446 or click here to contact us for a demo or trial

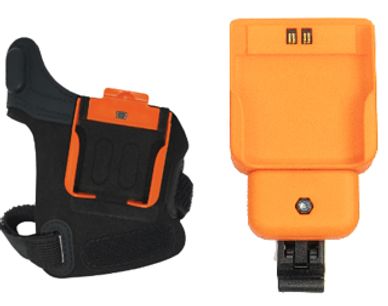

ProGlove Mark2 Wearables

Index Trigger

  • For environments without risk of injury
  • Wearable both with a free hand as well as in combination with different glove types
  • Left and right version available


Trigger: Textile trigger located on the side of the index finger.

Features: Comfortable reinforced edges. Ergonomic thumb and forefinger release

Sizes: S, M, L / Varied sizes customised by industry

ProGlove Mark2 Accessories

Battery Charger

Battery Charger

Battery Charger

The Charging Station can be used to charge two MARK scanners simultaneously. Full load cycle of a MARK scanner takes less than 2 hours. The charging station is powered by a USB power supply.


  • Charging Station for two MARK scanners
  • Less than 2 hours charge time
  • Can be mounted on vertical surfaces

Access Point

Battery Charger

Battery Charger

The Access Point receives data from the barcodes scanned by the MARK scanner. This is connected to the PC, IPS, terminal or tablet via USB or RS232 cable.


  • Connected via USB or RS232
  • Frequency band of 868 MHz
  • Safely transmits via chosen radio frequency channels

ProGlove Mark Display

MARK Display is the most advanced, lightweight wearable scanner available for frontline workers. The hand-free, data-first approach provides flexibility and independence for picking, sorting and sequencing processes. The intuitive display, acoustic and haptic feedback guides workers through their processes saving up to 6 seconds per scan and reducing error rates by up to 33%.

Where Data Meets Reality for Frontline Workers

The MARK Display adds intelligence to picking, sorting and sequencing processes by communicating only the essential data that workers need for efficiency and high performance. The intuitive display and acoustic and haptic feedback guide workers through their processes, which can save up to 6 seconds per scan and reduce error rates by up to 33%.


You’ll see immediate results across your supply chain using the MARK Display to communicate data between scanners, devices and central systems seamlessly. In addition, the device’s high-contrast 1.54” e-paper display is easy to read and helps reduce eye strain that workers can experience during shifts.

Features

Instructive

  • All information on 1.54” high contrast e-ink display


Compact & Lightweight

  • Fits on the back of your hand
  • Weight just 48g



Ergonomic

  • Multiple wearing options with intuitive triggers


Simple Pairing

  • Connects via BLE with a single scan


Barcode Scanning

  • Compatible with all 1D/2D Barcodes including QR, Data Matrix
  • Scan Range 30 cm - 150 cm with crosshair aiming


Feedback

  • Optic, acoustic and haptic feedback with every scan.

Call for demonstration or prices

Call us on 0161 818 6446 for pricing and availability
